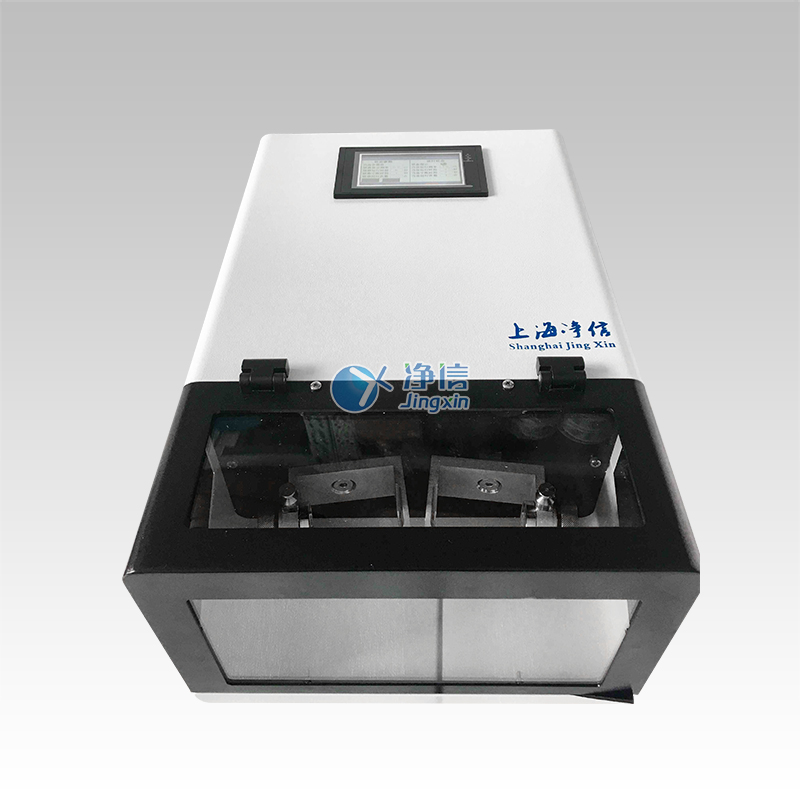

XM-2017S (patented product, counterfeiting must be investigated! 2013200394108) is a veritable laboratory multi-functional and efficient sample preparation instrument, a new product specially launched for "small samples". The XM-2017S medium-flux tissue grinder can quickly and effectively dry or wet grind hard, soft, elastic and other samples within 1-3 minutes, and can also achieve the mixing and homogenization of powders and turbid liquids. For the purpose, cryogenic liquid nitrogen freezing grinding can also be performed, and biological cell disruption and DNA/RNA extraction can also be performed.
The main parameters | Parameter range |
weight: | About 40kg |
Applicable samples: | Plants (roots, leaves, seeds, etc.), animals (muscles, internal organs, bones, teeth, etc.), microorganisms, food, soil, minerals, etc. |
Grinding Type: | Dry grinding, wet grinding, cryogenic grinding |
Number of grinding platforms: | 2 |
Movement: | Horizontal reciprocating oscillating ball mill |
Flip switch: | Automatic stop when the cover is opened |
Sample throughput: | 2 15ml grinding jars, 24 2.0ml sample tubes, 10 5.0ml sample tubes |
Programming function: | Programmable grinding time, pause time and number of cycles |
Liquid nitrogen operation basket: | Standard 1 pair, convenient for adapter freezing operation |
Grinding jar: | Optional: 15ml screw cap grinding jars (2 pcs/pair), available in all-steel and Teflon materials |
Machine noise: | <55dB(A) |
Speed accuracy: | ±30r/min Timing range: 1min～99min |
High speed: | 5000r/min |
Relative centrifugal force: | 4390×g |
Capacity: | 1000ml (4×250ml) |
power supply: | AC220V±22V 50/60Hz 10A |
Total power: | 400W |
Dimensions: | 450×545×380mm(L×W×H) |
Security Level: | Compliant with EU CE certification |
