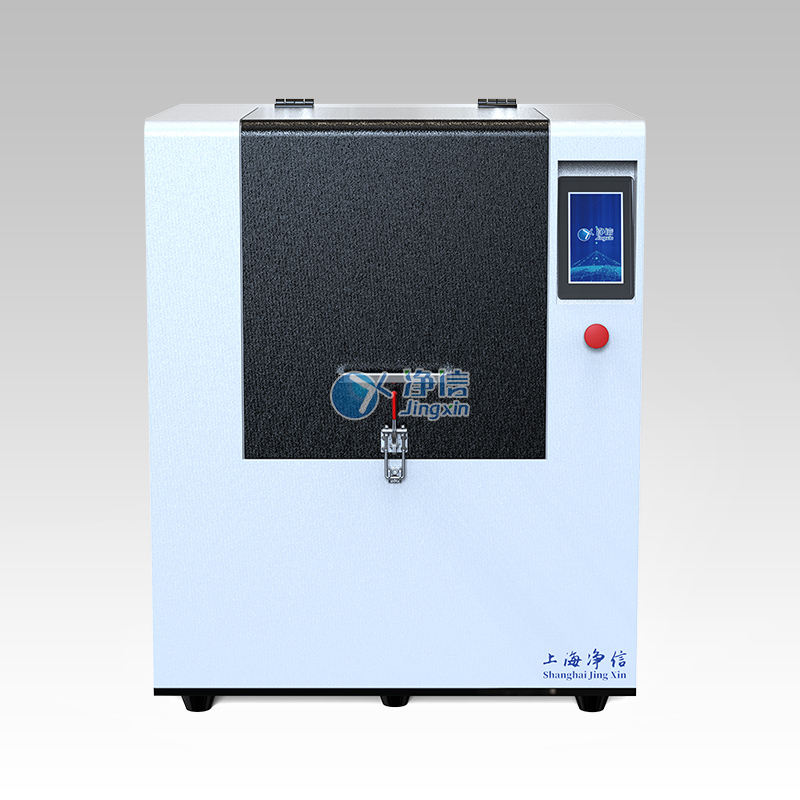

Ultra-high-throughput tissue grinder JXFSTPRP-576 (patented product, counterfeit must be investigated! 201620363493X)
Main application: It is used for sample pretreatment of biological samples, and it can truly realize the rapid extraction of genomes in large batches and automation.
Application fields: tissue homogenization, grinding, cell disruption, homogenization, material dispersion, preparation, sample mixing, shaking.
Display mode: LCD screen
Processing sample volume: 6 96-well 2ml large plates, 48 5ml grinding tubes, 48 (7-15) ML grinding tubes, 9 50ML grinding tubes, 6 100ML grinding tubes, 2 300ML grinding tubes, 1 A 500ML grinding tube, and various specifications of grinding tubes can be customized arbitrarily.

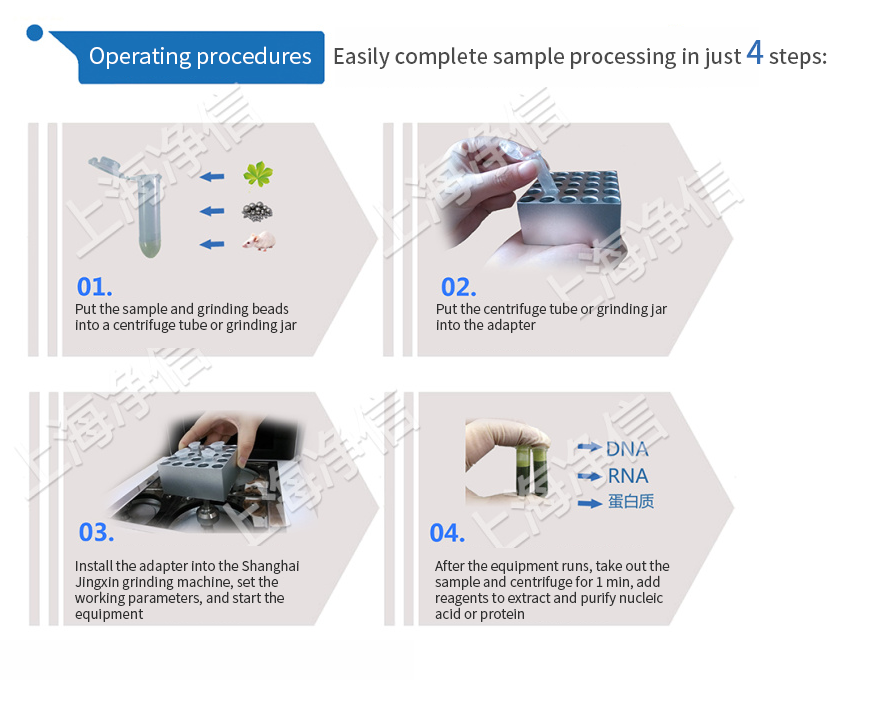

Operating procedures:
Parameters：
The main parameters | parameter range |
Grinding speed: | 0-50HZ |
power supply: | 220v/50HZ. |
operating hours: | 0-9999S |
Grinding Ball Diameter: | 0.1mm-30mm |
Adapter Specifications: | Compatible with 6*96-well 2mL large plate, can be customized Compatible: 48*5mL grinding tube, 48*(7-15)mL grinding tube, 9*50mL grinding tube, 6*100mL grinding tube.The grinding jar compatible with stainless steel can also be customized, 5mL, 15mL, 50mL, 100mL, 300mL, 500mL optional |
Grinding Ball Material: | Stainless steel, chrome steel, zirconia, quartz sand, tungsten carbide. |
Accelerate/Decelerate: | 5 seconds |
Noise level: | <55db. |
Grinding method: | Wet grinding, dry grinding, and cryogenic grinding are available. |
Number of grinding platforms (the number of grinding jars that can be accepted): | >12 |
a fixed way: | Fastening device with automatic centering. |
Shockproof principle: | JXFSTPRP-1 anti-vibration principle, as well as the three-dimensional integrated movement mode of the grinding bead movement, ensure the idealization of sample processing and instant crushing effect. |
Feed size: | No requirement (adjusted according to adapter)/~5μm |
Dimensions: | 580mm*470mm690mm |
Weight: | 75kg |
Cooling: | Can be matched |
standard: | CE |
xperimental site:
